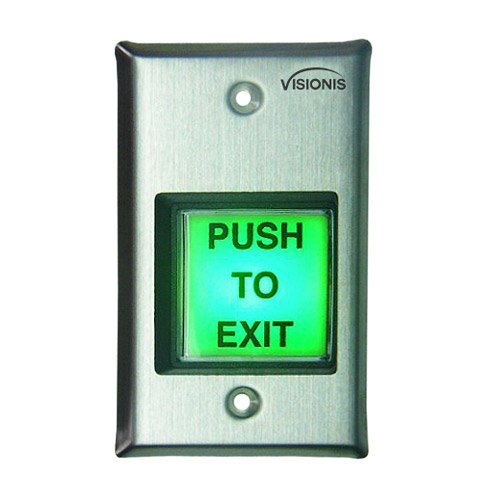

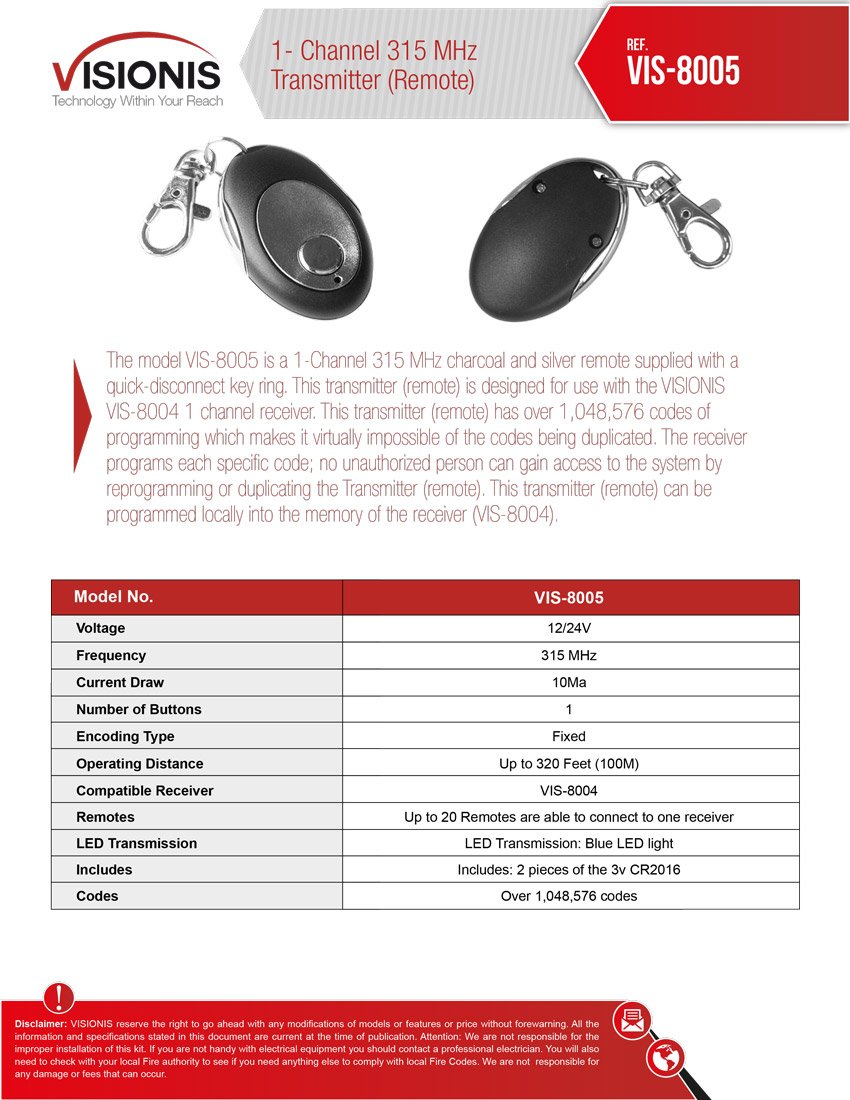

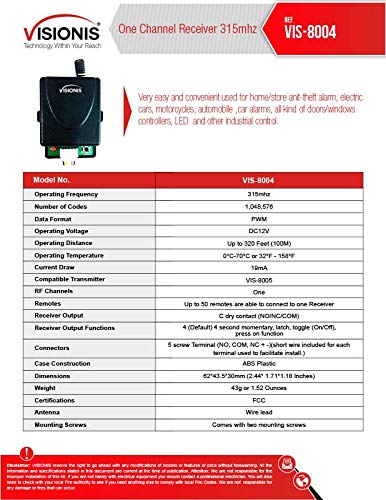

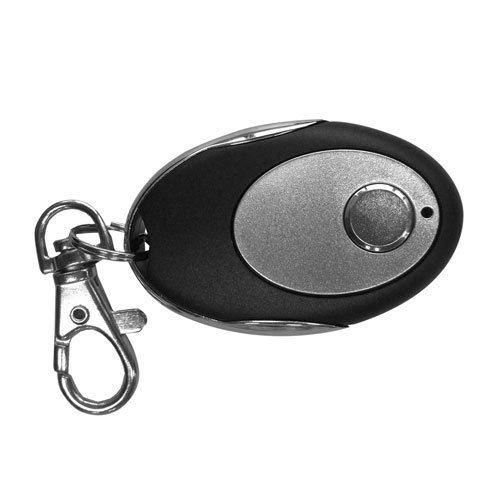

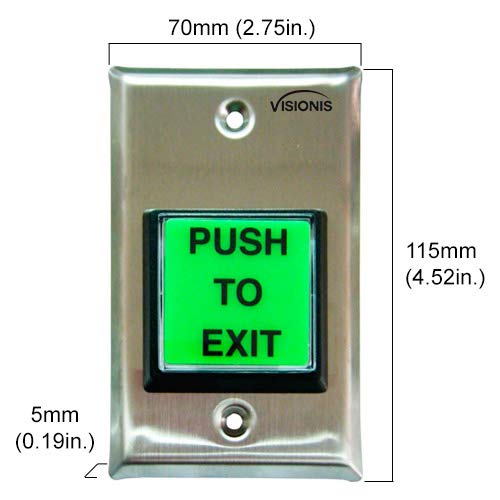

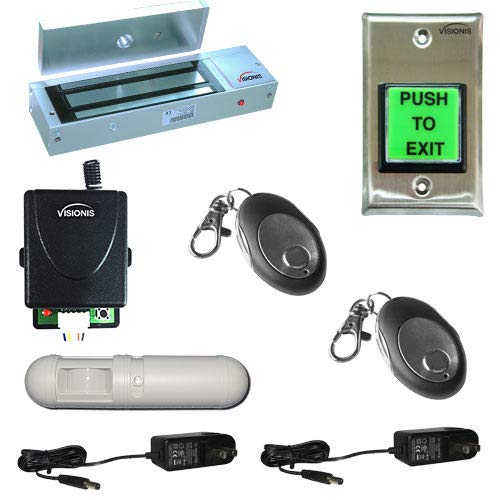

Welcome to Visionis The 5356 kit is a one door 1200lbs Maglock Buzz-in kit for doors that open out with request to exit motions sensor. ​This is for indoor applications. It is mainly used for customers that do not want to physically get up and open the door. With this system, you will be able to let people in by clicking on the wireless RF remote, the VIS-8005. The remote communicates with the wireless receiver, which can program up to 20 remotes, and it has a range of 160 feet. There are two main features on the receiver that will allow you to program the wireless receiver in two different ways. The default function of the receiver is that when the power is on, the mag lock of your kit is locked and when you press the remote the maglock will unlock temporarily to open the door. The other function that the receiver has is the ON/Off feature. This feature is very similar to a light switch; when you program this option you would press the remote once and the door will unlock and remain unlocked until you press the button again. When you press the remote again, the door will then lock. This magnetic lock system also brings an exit button that will allow you to exit from the inside of the door. Keep in mind that this exit button does not bring a delay meaning that you would have to press the exit button at the same time that you open the door. Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority. Secure Your System The VISML1200LED magnetic door lock provides a strong sense of security with its outstanding holding force and significant features. The maglock is installed beneath the top of the door frame to make sure that the door remains closed and locked. With the VISML1200LED, you have up to 1200lbs of force protecting the door, which means it would take above 1200lbs of force to open the door if someone wanted to force entry into the door. The LED light on the maglock helps you identify when the maglock is locked and unlocked. When the light is red, the maglock is locked. When the light is green, the maglock is unlocked. Voltage Input: 12 VDC / 24 VDC Current Draw: 12V / 500mA ; 24V / 250mA (±5%) Holding Force: Up to 1200 lbs (545 kg) Hall Effect Contact: SPDT rated 2A at 24 VDC Magnetic Contact Rating: 28 VDC, 0.2A, 5W Anti-Rust Surface Treatment: Blue Zinc Plating Operating Temperature: 0~55° C (32~131° F) Weight (Magnet): 2.5 kg (±1%) Dimensions: Magnet – (L)266x(W)67x(T)39 mm Armature – (L)185x(W)61x(T)16.5 mm Green/Red LED Indication for EM Lock Status Knowing The Details Supply Voltage: 12-24VDC or VACSupply Current: 18-30mA@12-24VDC,45-80mA@12-24VACRelay Output: 2C Contact(N.C/N.O), 24VDC 1A Max.Detection Type: Passive infraredRelay Hold Time: 0.5-64 secondsLED Indication: RedOperating Temp: -14° F to 131° F(-10° Cto55°C)Weight: 0. 4Ib (0. 18kg)Range Coverage: 12×5 ft at 7ft high,30×12 ft at 15 ft high (Adjustment)Humidity: 0-95% non-condensingDimensions: 6.53″Wx1. 57″Hx1. 53″0 ( 166x40x39mm) Getting In and Out Operating Frequency: 315mhz Number of Codes: 1,048,576 Data Format: PWM Operating Voltage: +12V 24V Operating Distance: Up to 160 Feet (50M) Operating Temperature: 0-70°C or 32 – 158°F Current Draw: 19mA Sensitivity: -100DB Compatible Transmitter: VIS-8005 RF channels: One No. of Remotes that are able to connect to one Receiver: Up to 20 Receiver Output: C dry contact (NO/NC/COM) Receiver Output Functions: 5 (Default) 4 second momentary, 1-sec momentary, toggle, validity, latch Connectors: 5 screw Terminal (NO, COM, NC + -) Case Construction: ABS Plastic Dimensions: 63mm*45mm*30mm (2.4 Inches* 1.77 Inches*1.18 inches) Weight: 43g or 1.52 Ounces Antenna: Wire lead Mounting Screws: Comes with two mounting screws Voltage: 12/24V Frequency: 315 MHz Current Draw: 10Ma Number of Buttons: 1 Encoding Type: Fixed Operating Distance: Up to 160 Feet (50M) Compatible Receiver: VIS-8004 No. of Remotes that are able to connect to one receiver: Up to 20 LED Transmission: Blue LED light Includes: 2 pieces of the 3v CR2016 Over 1,048,576 codes The Visionis 7000 is a standard sized push to exit button. Being one of the most popular exit buttons, it can be used in residential, commerical and industrial areas for all different types of applications. With the illuminated back light and stainless steel plate, it gives the exit button that much more of a presence and professional look. This exit button is for indoor use and does not have a delay. Stainless-steel face-plate “PUSH TO EXIT” & “PRESIONE PARA SALIR” inserts included Fits into standard single-gang box,Large square green color push button. 12-inch, AWG 18 wire leads Degree of Protection: IP-40 LED: Yes LED Life: 20.000hours Switch Material: Plastic Switch Plate Material: Stainless Steel
